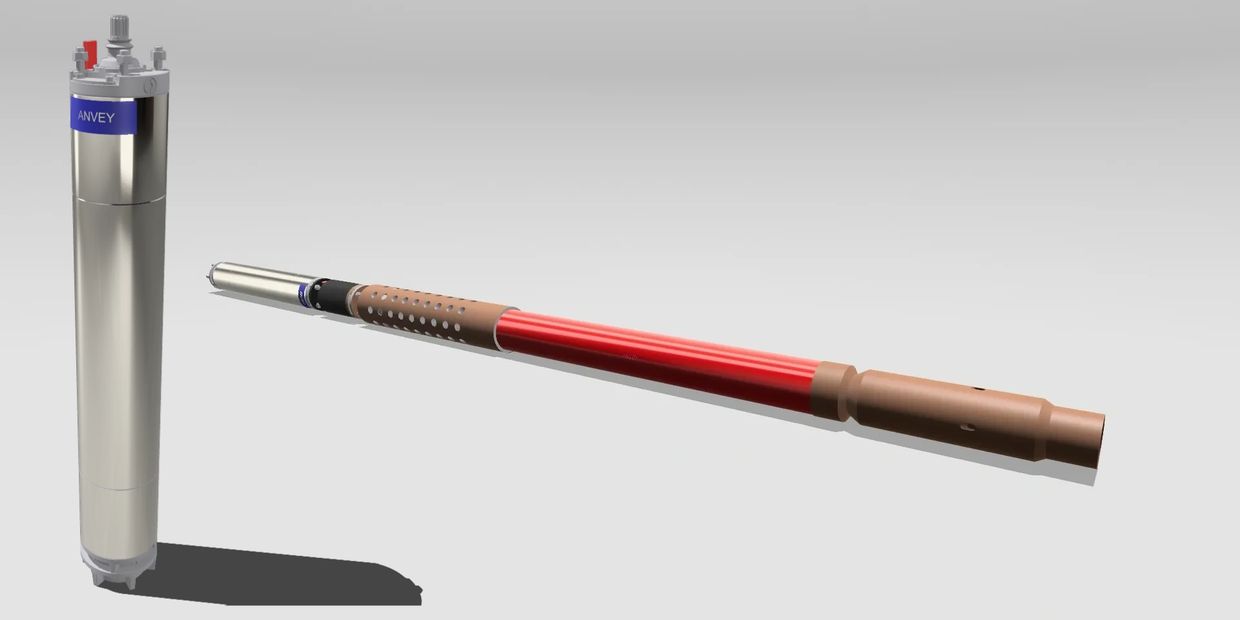

ANVEY PMM‑PCP is a next‑generation artificial lift system that utilizes a permanent magnet motor (PMM) to drive a progressive cavity pump without the need for sucker rods. This efficient system delivers 15–98 m³/day per 100 RPM from depths of up to 2000 meters, ensuring high efficiency, deep-set capability, and a long service life even in abrasive, solids-laden wells.
The permanent magnet motor sits at the base of the assembly and provides high torque with low electrical losses. A circulation impeller mounted on the motor shaft continuously moves well fluid around the motor housing, maintaining thermal distribution even at low flow or high viscosity. Above the motor, a high-capacity thruster absorbs axial loads and safeguards the motor bearings from the dynamic thrust generated by the progressive cavity pump.
A specially engineered orbital tube encases a sealed double‑cardan joint that operates fully immersed in well fluid. This joint effectively converts the PCP rotor’s natural elliptical orbital motion into smooth, concentric rotation for both the thruster and the motor. The orbital tube is designed with intake ports that allow well fluid entry while preserving structural integrity and flow efficiency.
The upper section of the system carries the PCP assembly, which is chosen from market-proven geometries capable of managing solids and abrasive production. Additionally, the system is outfitted with flush valves for controlled startup, shutdown, and wellbore cleaning.
A surface controller oversees the entire artificial lift system, providing features such as speed control, torque management, soft-start/stop, overload protection, thermal monitoring, and production optimization. A specialized variant of the ANVEY PMM‑PCP includes a subsurface pressure and temperature monitoring system, which transmits real-time downhole data to the surface via power‑line carrier communication through the motor power cable. This functionality facilitates advanced diagnostics, intake pressure control, and early detection of pump-off, gas interference, or solid loading.
By utilizing the ANVEY PMM‑PCP, operators can avoid the tubing wear, rod wear, and gas leakage issues associated with sucker‑rod‑driven progressive cavity pumps, leading to a cleaner, safer, and more economical artificial lift solution.
Why Choose pmm-pcp?
No Rods, No Tubing Wear, No Gas Loss
- Eliminates the rod‑on‑tubing friction that causes severe wear in conventional PCP systems.
- Prevents rod buckling, rod parting, and rod/tubing scoring, reducing workovers.
- Minimizes gas leakage caused by worn tubing and rod‑string movement.
- Significantly lowers OPEX and improves well integrity.
High‑Efficiency Permanent Magnet Motor
- High torque at low current draw, ideal for deep installations.
- Stable performance across long cable lengths.
- Integrated circulation impeller ensures uniform motor cooling.
Deep‑Set Capability
- Designed for 2000‑meter installations without thermal or torque limitations.
- Suitable for deviated and horizontal wells requiring long PCP strings.
Wide Production Flexibility
- Delivers 15–98 m³/day per 100 RPM, enabling precise pump sizing.
- Supports low‑rate and high‑rate wells with the same motor platform.
Solids‑Handling PCP
- Compatible with market‑standard PCP geometries proven for abrasive production.
- Maintains volumetric efficiency in sand‑rich environments.
Double‑Cardan Sealed Joint for Rotor Dynamics
- Converts the PCP rotor’s elliptical motion into smooth rotation.
- Sealed bearing architecture protects the joint while operating in well fluid.
- Reduces cyclic loading on the thruster and motor.
High‑Capacity Thruster Module
- Absorbs axial loads generated by the PCP.
- Protects motor bearings from thrust overload.
- Ensures stable, vibration‑free operation.
Optimized Intake Through Orbital Tube
- Engineered intake ports ensure consistent fluid entry.
- Supports cooling, solids movement, and pump priming.
- Maintains flow distribution around the coupling.
Flush Valve Integration
- Clean startup and shutdown.
- Easy wellbore circulation and solids removal.
- Reduces risk of plugging during interventions.
Advanced Surface Controller
- Variable‑speed control for production optimization.
- Torque, temperature, and load monitoring.
- Soft‑start/stop, overload protection, and pump‑off logic.
- Real‑time diagnostics and SCADA connectivity.
Subsurface Pressure & Temperature Monitoring Variant
- Downhole sensors measure intake pressure and temperature.
- Data transmitted to surface via power‑line carrier communication through the motor cable.
- Enables pump‑off control, gas‑interference detection, and reservoir diagnostics.
- Enhances system intelligence without additional cables or penetrations.
